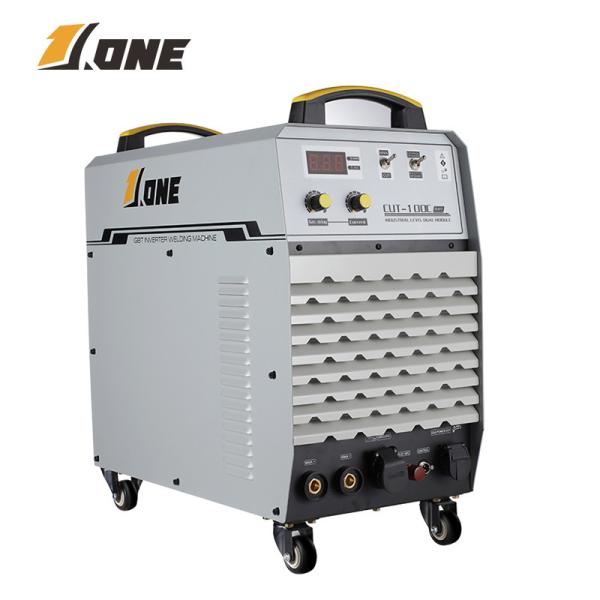

    0-100A Portable Plasma Cutter With Built In Air Compressor 9KVA

    Ask Lasest Price
    Brand Name : JONE
    Model Number : CUT-100C
    Certification : CE
    Payment Terms : T/T, L/C
    Supply Ability : 70000 PCS per /month
    Delivery Time : 4 WEEKS
    Price : Negotiate
    • Product Details
    • Company Profile

    0-100A Portable Plasma Cutter With Built In Air Compressor 9KVA


    JONE PLASMA SOUND PC 70/T 208 440V MAQUINA PARA SOLDAR PLASMA SOUND PC130T 208 440V 50 60 MAQUINA CUT-40


    • JONE is an expert in Professional Plasma Cutting Machine, We have more than 20 years of experience for manufacturing variety pcba and welding machines. Our products include Plasma Cutting Machine, TIG Welding Machine, Wire Cut Machine & Laser Cutting Machine.
    • A fast person can cut the stainless steel in 20-40 seconds. So fast! Say goodbye to the long wait for your cutting job. It is convenient for you to do other jobs since this Plasma Cutter is a one-man-manual machine, We will also provide special cutting handle to improve work efficiency by more than 10%


    technical parameter


    ModelCUT-40CCUT-60CCUT-100C
    TypeIGBTIGBTIGBT
    AC Input Voltage(V)220V(110V can do)380V380V
    Output current range(A)0-400-600-100
    Rated Input Power Capacity(KVA)6.2109
    Input Frequency(Hz)20~4020~6030~100
    Non-load Voltage(V)300300300
    Rated Duty Cycle(%)60%60%60%
    Efficiency(%)85%85%93%
    Class of InsulationFFF
    Protection class of caseIP21IP21IP21
    Qualified cutting (mm)4mm-6mm6mm-10mm25mm-30mm
    Quick joint Size10-2510-2535-50
    GW/NW(KG)19.5/23.534KG53KG
    Machine Size(LxWxH mm)425*285*335505*330*410565*315*580
    Package(LxWxH mm)510*380*390 kraft paper box+ foam600*425*490 kraft paper box+ foam630*330*650 kraft paper box+ foam
    2m 16mm2300A clamp2m 125mm2 300A clamp2m 35mm2 500A clamp 2m 35mm2 500A holder
    Accessories4m AG-60 cutting gun4m P80 cutting gun4m P80 cutting gun
    mask, brush, manual Relieve valvemask, brush, manual Relieve valvemask, brush, manual Relieve valve
